Bob Leffler's RV-10
' style=
Date:  1-28-2012
Number of Hours:  6.00
Manual Reference:
Brief Description:  Switch & LED Wiring

I started wiring the panel switches and annunciator LEDs.
' style=

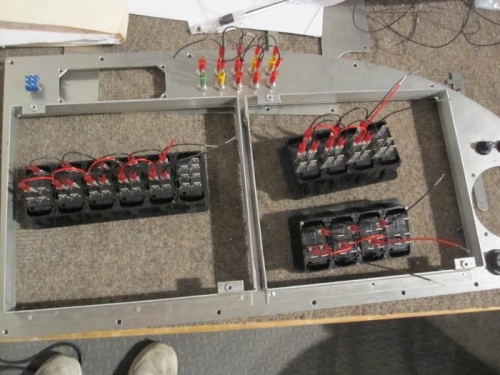

Panel Switches

Panel Switches

' style=

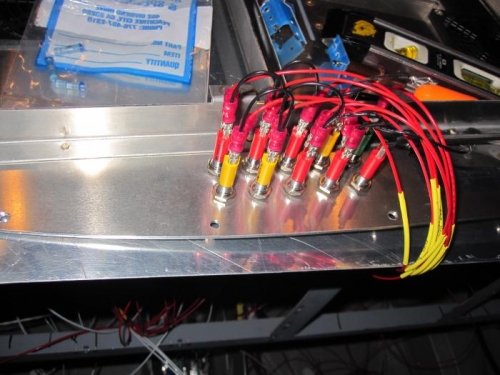

Annuciator LEDs

Annuciator LEDs
