Bob Leffler's RV-10
' style=
Date:  7-6-2009
Number of Hours:  1.00
Manual Reference:  29-19, 30-2
Brief Description:  Fuselage vents and start steps

29-19, Step 5

Machine countersink the holes in the F-1093 Vent Doors and F-1070-L and -R Middle Side Skins to place the flush face on the outboard side of the aircraft. Disassemble the F-1086A and F-1086B Vent Brackets and F-1096 Vent Doublers from the F-1070 Middle Side Skins. Disassemble the Vent Door Subassemblies. Deburr, clean, and prime all parts.

30-2, Step 1

Drill the F-1038 Step Support Block per the callouts in Figure 1.
' style=

Vent doubler clecoed and machine countersinked

Vent doubler clecoed and machine countersinked

' style=

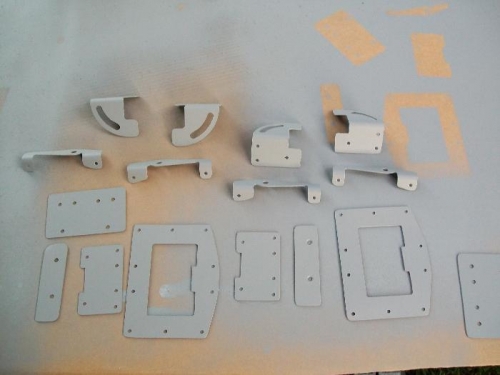

Parts all primed

Parts all primed

' style=

Step support block drilled

Step support block drilled
