Date:  1-13-2008
Number of Hours:  2.75
Manual Reference:  Page 130
Brief Description:  Door frame installation

The door frame is designed to be installed without any trimming of the fiberglass. The top door frame is attached in the lower back side with some rivets.

The top of the door frame is riveted to an aluminum frame that sits on the inside bottom root of the wing.
' style=

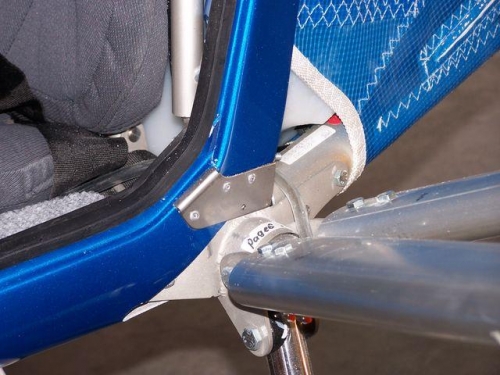

Top door frame - see the bracket the frame is riveted to.

Top door frame - see the bracket the frame is riveted to.

' style=

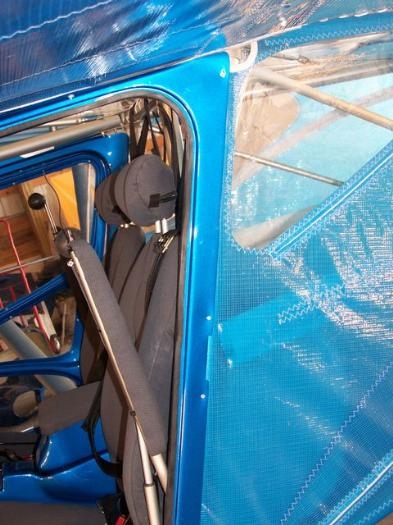

Rear rivet points

Rear rivet points

' style=

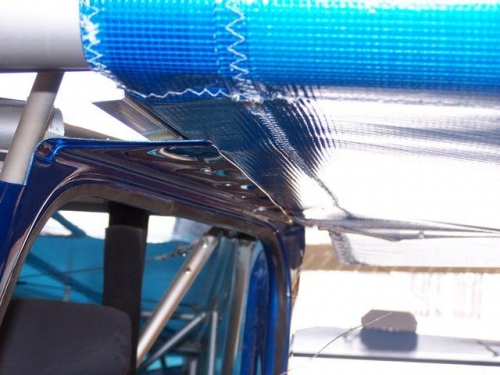

Plate riveted to fairing and door frame

Plate riveted to fairing and door frame
